FPG4
FPG4 GS Fuseholder: Shock-Safe Fuseholder, 5 x 20 mm, Slot/Fingergrip, vertical, IEC 60335-1
| Shocksafe Category |
PC2 |
| Fuse-Link |
5 x 20 mm |
| Mounting |
PCB |
| Terminal |
Solder THT |
| Rated Voltage |
250 VAC (VDE), 400 VAC (UL/CSA) |
| Rated Current |
10 A (VDE), 16 A (UL/CSA) |
| Rated Power Acceptance IEC |
2.5 W / 10 A @ Ta 23 °C
Admissible power acceptance at higher ambient temperature see derating curves |
| Degree of Protection |
IP 40 |
| Protection Class |
Suitable for appliances with protection class 1 or 2 acc. to IEC 61140 |
| Admissible Ambient Air Temp. |
-40 °C to 85 °C |
| Climatic Category |
40/085/21 acc. to IEC 60068-1 |
| Material: Socket |
Thermoplastic, black, UL 94V-0 |
| Material: Terminals |
Tin-Plated Copper Alloy |
| Unit Weight (Socket/Cap) |
4.66 g |
| Storage Conditions |
0 °C to 60 °C, max. 70% r.h. |
| Product Marking |
 , Type, Voltage, Power Acc./Current Rating, Approvals |
Technical Data
| Soldering Methods |
Wave |
| Solderability |
235 °C / 2 sec acc. to IEC 60068-2-20, Test Ta, method 1 |
| Resistance to Soldering Heat |
260 °C / 10 sec acc. to IEC 60068-2-20, Test Tb, method 1A |
| Contact Resistance |
< 5 mΩ at 20 mV |
| Dielectric Strength |
> 3 kV between L-N
(50 Hz; 1 min) |
| Impulse Withstand Voltage |
> 2.5 kV between L-N |
| Insulation Resistance |
> 10 MΩ between L-N
(500 VDC; 1 min) |
| Overvoltage Category |
I - II acc. to IEC 60664-1 |
| Pollution Degree |
1 - 3 acc. to IEC 60664-1 |
| Resistance to Vibration |
acc. to IEC 60068-2-6, test Fc |
 |

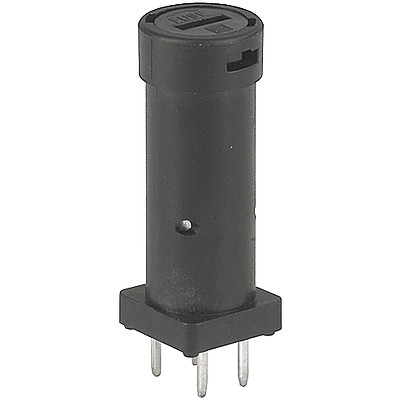

Variant 3101.0040
|
 |

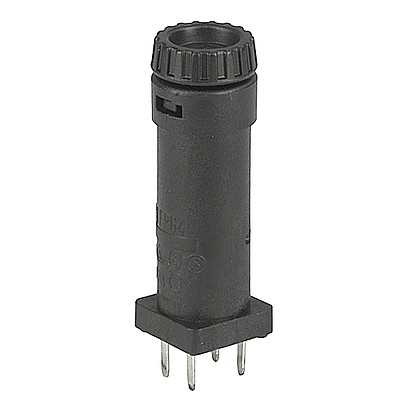

Variant Fingergrip 3101.0045
|
 |
Drilling diagram
|
|
